50Hz 2.1x Optical Zoom 800*600 Thermal Imaging Monocular Scope, Automatic calibration

FOB Reference Price:Get Latest Price
  • >=1
    US $2800.00
Supply Ability:
500 Piece/Pieces per Month Welcome to inquiry of our Thermal Imaging Monocular.
Port:
Shenzhen
Report Suspicious Activity
Overview
Quick Details
Item:
Thermal Imaging Monocular
Magnification:
2.1X
Digital zoom:
2X
Laser Rangefinder:
5-800m
Frame Rate:
50HZ
Microbolometer resolution:
384x288 pixels
Pixel Pitch:
17um
Video output:
PAL
Lens diameter:
25mm
Power Supply:
3.7v
Packaging & Delivery
Packaging Details
50Hz 2.1x Optical Zoom 800*600 Thermal Imaging Monocular Scope, Automatic calibration
Package Contents:
2.1x Thermal Imaging Monocular T700
Carrying Case
Extra Battery Container
Rechargeable adaptor
External 5" LCD screen
Delivery Time
Shipment in 15 days after payment.

50Hz 2.1x Optical Zoom 800*600 Thermal Imaging Monocular Scope, Automatic calibration

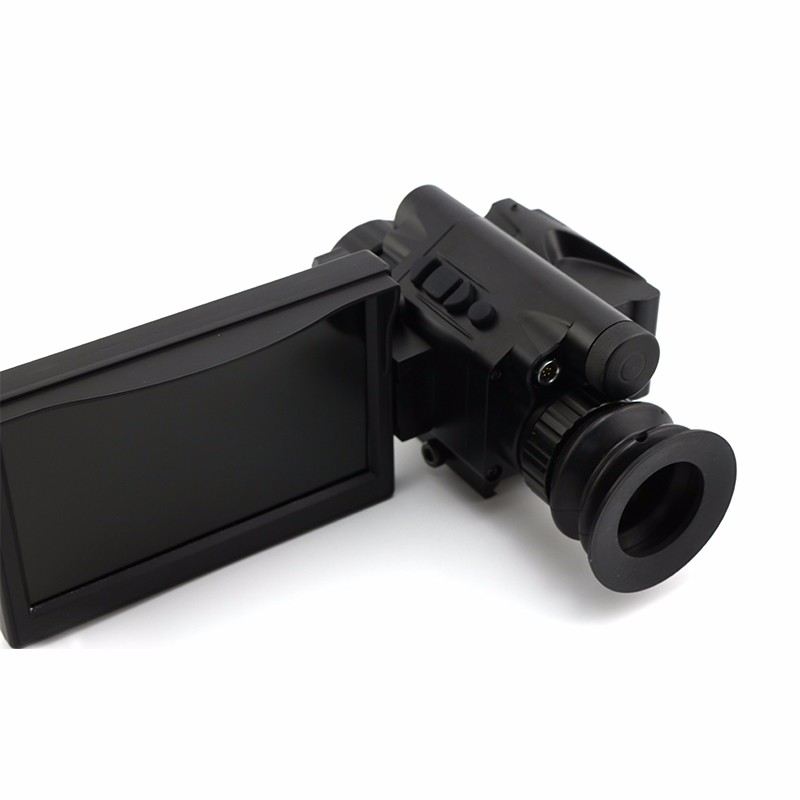

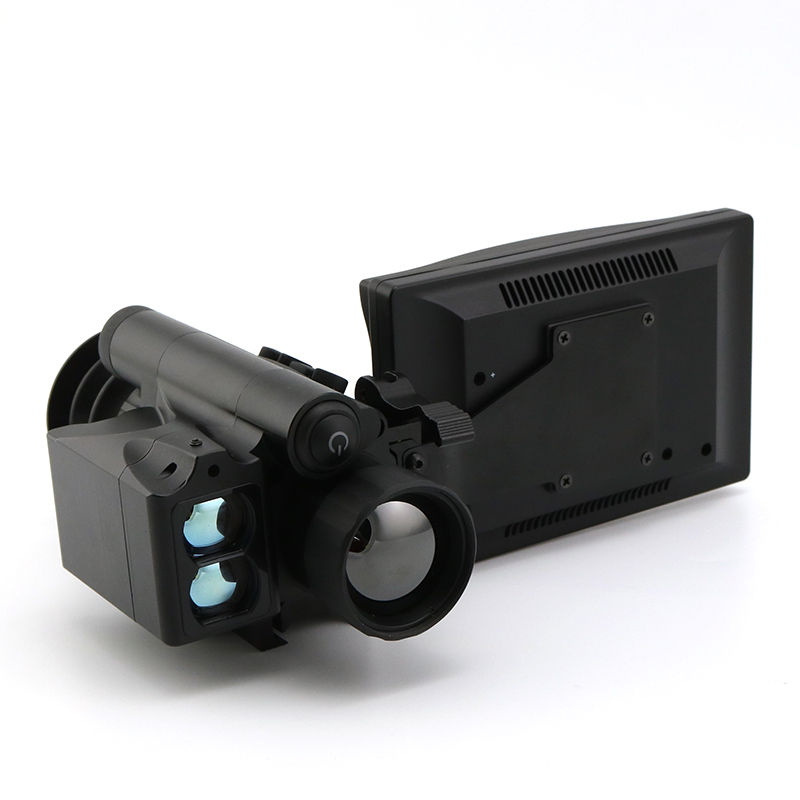

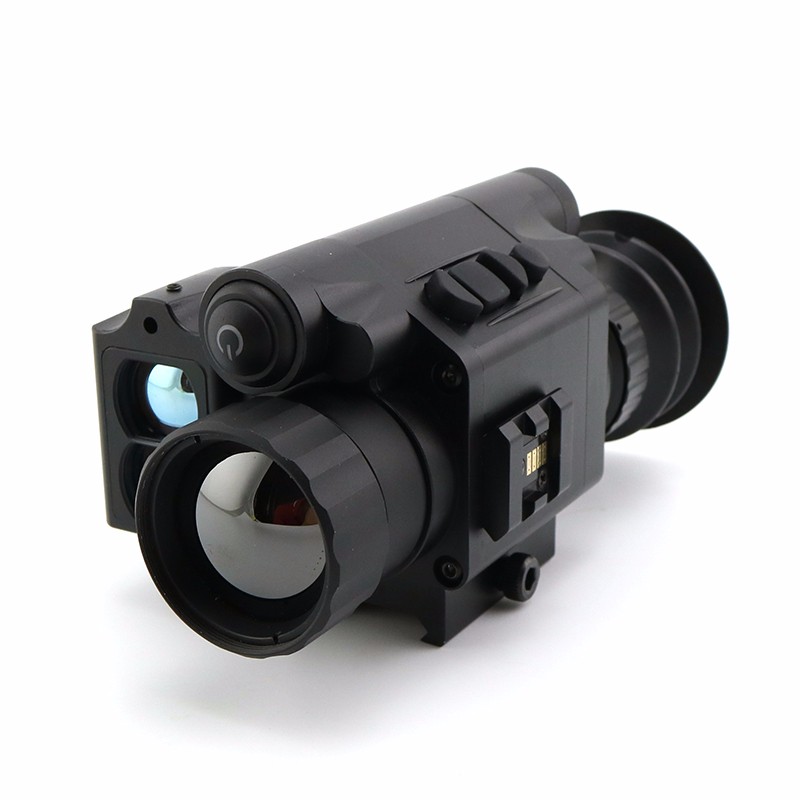

T700 Thermal Imaging Monocular - 50Hz, automatic calibration, 800*600 has been designed to be the ideal way to make sure that you have a top of the line thermal image monocular that won't let you down when you need it most.
Featuring a thermal core resolution of 384x288 ( France ULIS ) to capture maximum thermal energy, this incredible Heat Seeking Monocular from the professional product engineers at delivers "white hot","black hot" and “muti-colors hot”(“red hot”, “blue hot” and green hot” ) heat signature observation that can be used for a vast range of uses from hunting, to surveillance and law enforcement applications.
The high 50 hertz refresh rate and 800*600 LCD display resolution contributes to a crisp, consistent image of faster-moving objects more than 980 meters away. Long-distance viewing is made possible by the 2x digital zoom, which increases the 1x magnification to 2x.

Equipped with durable, 7075 aviation aluminum housing and a weight just 485g, the T700 Thermal Imaging Digital Monocular is extremely lightweight and weather resistant, able to withstand the harsh environments of the outdoors.
This Thermal Vision Unit includes a standard weaver rail fast-assembling lock allowing for attachment of external power supplies, as well as video output to record each session.

Product Description



Specifications for T700 Thermal Monocular
TypeThermal Imaging Monocular
Magnification2.1X
Digital zoom2x
Display Resolution800*600
External LCD screen Resolution800*480
Laser Rangefinder5-800m
Reticle optional6 different reticle
Frame Rate50Hz
Microbolometer resolution, pixels384x288 ( France ULIS )
Pixel Pitch17um
Display typeLCD Display
Display diagonal0.47inch
Video outputPAL
Red dot indicatorYes
Defective pixel repair optionYes
Lens diameter25mm
Relative aperture1;1.2
Minimum focusing distance5m
Exit Pupil35mm
Diopter adjustment±5
Range of detection (object (high*width = 1,7*0,5m)980m
Power Supply3.7V
Battery type18650 3.7V Li-battery
Battery life, hour>4hours
Body Material7075 aviation aluminum
Operating Temperature-30°C to +60°C
CalibrationAutomatic
Length125mm
Width41mm
Height58mm
Weight (without batteries)485g (17oz )



Features of Thermal Imaging Device 2.1x Digital Zoom:

384x288 resolution

50hz refresh rate

1 to 2.1x magnification (due 2x digital zoom)

800*600 display resolution

Automatic calibration mode

Hot white/ hot black /muti-colors hot viewing modes

Up to 980 meters detection range (human size target)

LCD display

Brightness and contrast adjustments

Video output

Quick start-up

External power supply adaptable

Compact and light weight

Company Information



Shenzhen Laser Explore Tech. Co., Ltd

is the professional laser rangefinder, ranging night vision, spotting scope manufacturer since 2005.  Our rangefinder is patented from domestic market and beyond. We keep on innovating to satisfy and encourage our client’s needs.

Thanks to our decade years experience on laser rangefinder production, our products have been sold to about 15 countries all over the world and we have worked with other OEM manufacturers over the world too.



Complete Production Process



Rangefinder has to be finished in several processes.It requires a variety of steps and a lot of arduous work tocomplete the high quality products such as: proofing-test-processing-Test and so on. From the process of producing semiconductor circuit board, uploading software onto the board, cleaning eyepiece, assembling the prism for the eyepiece, checking the good condition of the internal LCD, ratifying the emission and reception lens, testing the correctness of ranging to finally assembling to a whole piece. Every process is closely checked to make sure our product defect free.



Certificate

Our rangefinders are CE,ROHS,FCC, FDA,EN60825 approved.

Our Services



1. Response rate 91.3%, responding within 24 hours for inquiries.

2. All products are carefully checked and packaged in good condition before delivery. Defective rate is lower than 3‰

3. Fast delivery with expedite courier

4. ODM & OEM service

Packaging & Shipping





Package Contents:
2.1x Thermal Imaging Monocular T700
Carrying Case
Extra Battery Container
Rechargeable adaptor
External 5” LCD screen
FAQ



1.Are your company a trading one or a factory?

We are factory.

2.How long have your company run on Laser Range Finders?

We have been manufacturing and developing laser range finders for 11 years.

3.After an order is placed, when to deliver?

Delivery time depends on order quantity. We can deliver sample within 3 days after reception of payment.

4. Does your company accept customization?

We do customizing service for customers.

5.Do your products have warranty?

Yes, we offer 12 months warranty.
